Case Study: Balsa Wood Bridge

A Beginner’s Exploration of Physics and Architecture

Overview

One of the first projects I embarked on was building a balsa wood bridge. This beginner project was designed to help me understand fundamental physics and architectural principles. The goal was to construct a bridge capable of holding significant weight, showcasing the principles of durability and compressive strength through a woven triangle design. The entire structure was built using balsa wood and glue and painted for aesthetics.

Project Principles

The balsa wood bridge project cantered around several key principles:

1. Durability and Compressive Strength:

• The bridge explored the durability and compressive strength of structures.

• A woven triangle design was used to distribute the weight of objects placed on the bridge, similar to the design used in truss bridges.

1. Triangle Design:

• The triangle is a fundamental shape in engineering due to its ability to evenly distribute weight and provide stability.

• Incorporating this design into the bridge allowed it to support significant weight without collapsing.

1. Material Selection:

Balsa wood was chosen for its lightweight properties, making it easier to work with while still providing sufficient strength.

Building the Balsa Wood Bridge

The construction of the balsa wood bridge involved the following steps:

1. Measuring and Cutting:

   Measure balsa wood into 88 pieces, each 1.5 inches long.

2. Initial Assembly:

   Line up a row of 10 pieces and glue them together with supports. Repeat this for another set of 10 pieces.

3. Triangle Design:

   Take 22 sticks and create the triangle design between the rails.

4. Painting:

   Paint the rails with acrylic paint for aesthetics.

5. Repeating Assembly:

   Repeat steps 2, 3, and 4 for another set of rails.

6. Final Assembly:

   Glue sticks between the two sets of rails and add supports on both ends to complete the bridge.

Outcome

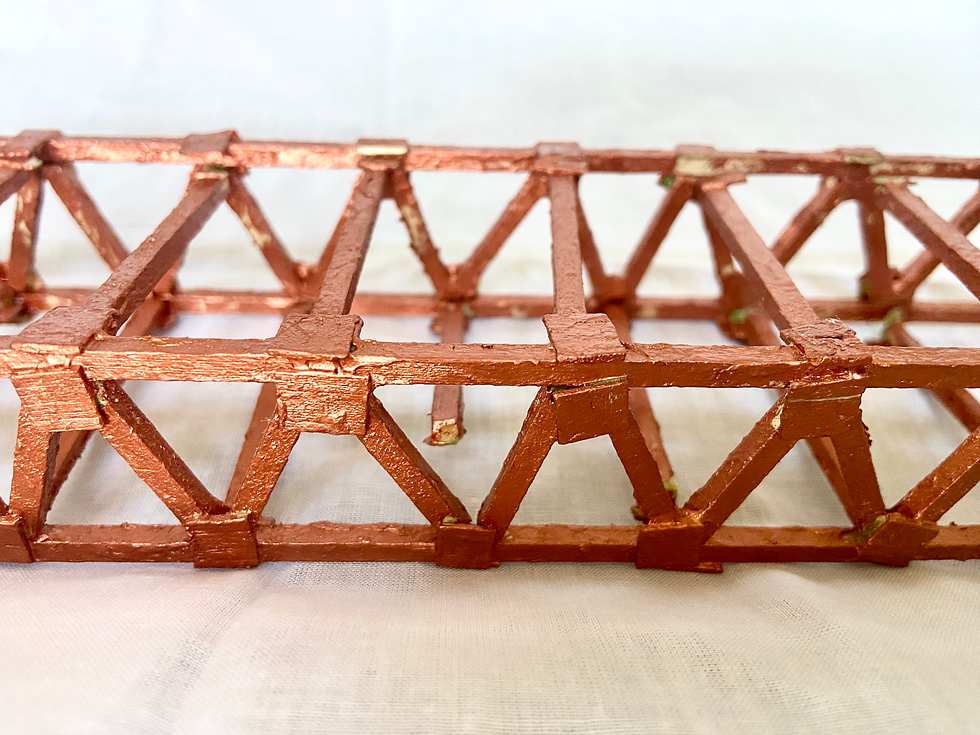

By following these steps, I successfully constructed a balsa wood bridge that effectively demonstrated the principles of physics and architecture. The project allowed me to apply basic engineering techniques and gain a deeper understanding of structural integrity. Painting the bridge added a final touch, making it not only functional but also visually appealing.

Conclusion

The balsa wood bridge project was a significant learning experience that laid the foundation for my understanding of physics and architecture. It taught me the importance of design, material selection, and the application of fundamental engineering principles. This project was a stepping stone in my journey of exploration and innovation in the field of engineering, sparking my curiosity and passion for building and creating.
